Panel Antennas

Micro-Ant specializes in mission-critical defense, SATCOM, aviation, and maritime panel antennas rather than consumer television reception. For free over-the-air TV, a UHF/VHF directional panel or Yagi antenna from a consumer electronics supplier would be more appropriate. Micro-Ant's portfolio is engineered for professional and government-grade applications.

A Yagi antenna uses a driven element with parasitic directors and reflectors arranged along a boom, providing high gain in a narrow beam. A panel antenna uses a flat aperture with multiple radiating elements, offering a broader, more controlled beam pattern. Panel antennas are typically more compact, lighter, and better suited for vehicle-mounted, airborne, or covert applications.

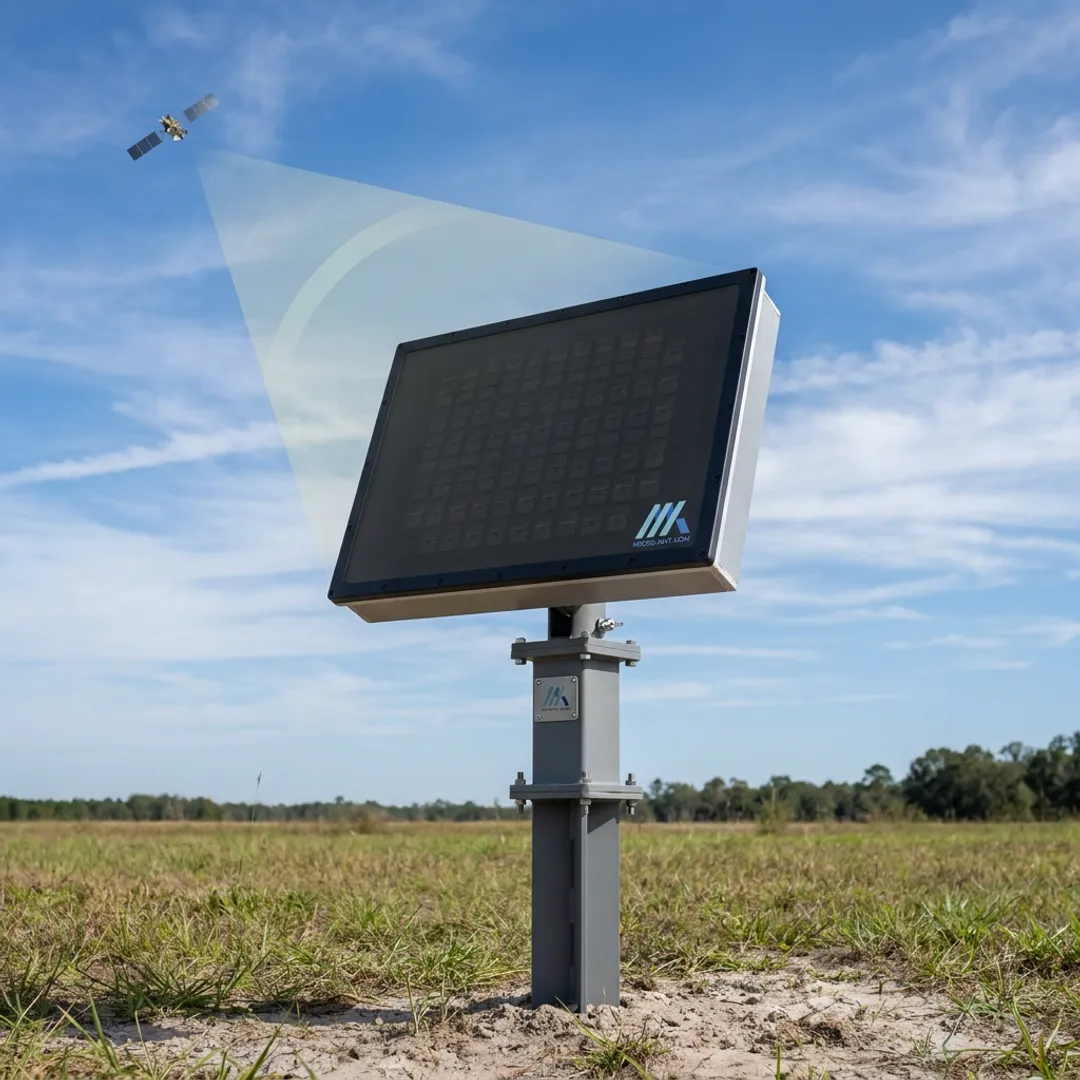

Micro-Ant's flat panel antennas cover L-Band through Ka-Band frequencies, including UHF, L, S, C, X, Ku, and Ka-bands spanning 750 MHz to 40 GHz. The award-winning Ultra-Wide Band Ka Flat Panel covers 17.7–21.2 GHz receive and 27.5–31 GHz transmit, enabling multi-operator satellite connectivity across LEO, MEO, and GEO orbits.

Yes. Micro-Ant's flat panel antennas hold INMARSAT CAT-01 and CAT-04 certifications and are certified for major satellite operators including Intelsat, Eutelsat, Inmarsat, SES O3B, Iridium Certus, Thuraya, and Hughes. The manufacturing facility is AS9100:2016 and ISO 9001:2015 certified, and ARSTRAT certifications are also available for defense applications.

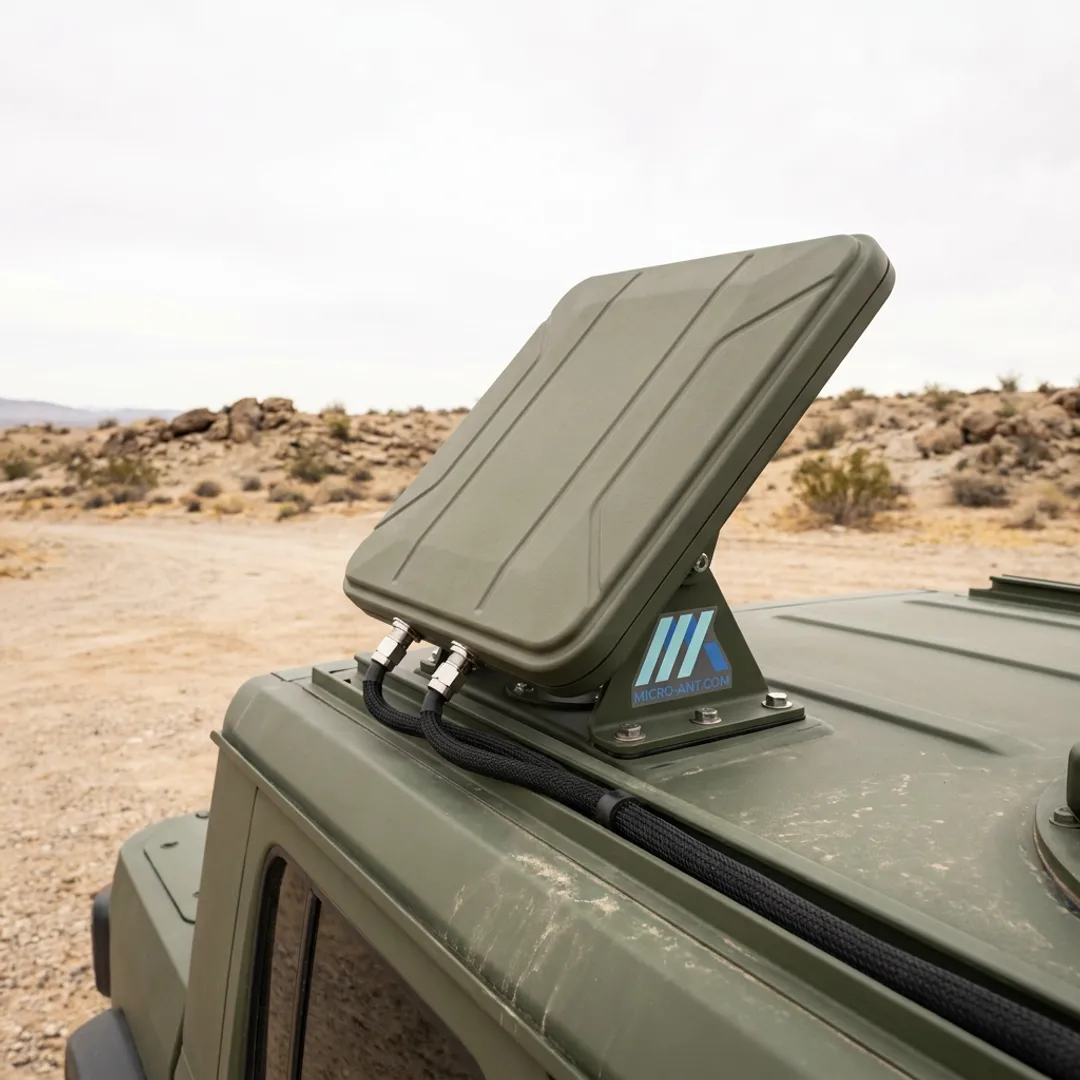

Micro-Ant's Ka Flat Panel is less than 1 inch thick, measures 12x17 inches, and weighs under 8 lbs — making it carry-on sized with no assembly required. This slim, lightweight profile makes it ideal for covert operations, field-deployable nodes, vehicular tracking, and aviation applications where size and weight constraints are critical.

Yes. Micro-Ant specializes in bespoke antenna design and manufacturing tailored to exact mission requirements including frequency band, gain, pattern, polarization, environmental constraints, and mounting configuration. With over 1,000 custom products delivered and a team with over 100 years of combined antenna engineering experience, Micro-Ant supports customers from initial design through certification.
